ID Card Printers & Software

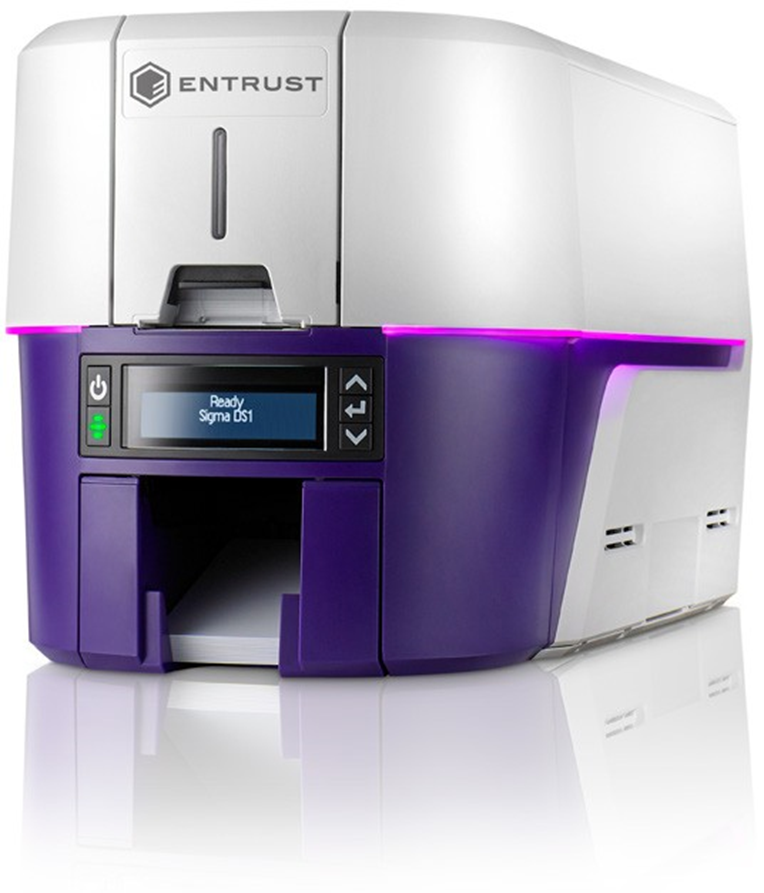

Entrust Sigma DS1 Direct-to-Card Printer

Sigma: The next generation of direct-to-card printing Entrust Sigma ID Card Printers are specifically designed for today’s cloud environments and give you the ability to easily issue secure identities.

• Simple: From unboxing to issuing ID cards and mobile flashpasses to managing your printer, we made sure Sigma was the most user-friendly ID card issuance solution in the world.
• Secure: Our industry-leading issuance security architecture will help protect your cards and your customers’ data during each step of the issuance process.
• Smart: Forward-thinking technology and scalability allow you to expand your ID card program as your needs evolve.

KEY FEATURES & BENEFITS

The world’s most user-friendly ID card printer

• Intuitive printer dashboard lets you see printer status, order supplies, check cleaning status, update firmware, or contact help – all from your mobile device.
• Seamless self-service lets you access how-to videos and other helpful resources by simply scanning QR code on the LCD display.
• Variable LED light ring lets you incorporate brand colours or other customization into your ambient environment.

Unmatched security

• Secure boot protects system from malware or virus on boot-up
• Trusted Platform Module (TPM) manages the printer’s own TLS/SSL certificates and keys
• Connection and data sent between software and printer is encrypted
• Customer data is encrypted and is not stored in the printer after printing is complete
• Lustre printing and other security features added to cards protect from tampering and counterfeiting.

Standard Features

• Print technology Dye sublimation
• Print capabilities Single-sided
• Print resolution 300 dots per inch (dpi) (300 X 600, 300 X 1200)
• Print speed Single-sided color ribbon: Up to 175 cards per hour (cph)
• Card capacity Input hopper – 125 cards
• Output hopper – 25 cards
• Card sizes Thickness: 0.010 inches to 0.040 inches (0.25mm - 1.016mm)
• Dimension: ID-1, CR-79
• Physical dimensions L 17.4 in x W 8.9 in x H 9 in / 44.2 cm x 22.6 cm x 22.9 cm
• Weight 11.3 lbs (5.49 kg)
• Connectivity USB
• Warranty 36 months

Optional Features & Supplies

Magnetic stripe encoding, ISO 7811 three-track support (high- and low-coercivity), JIS Type II single-track option. WiFi, types: 802.11g/n, Authentication modes: None, WPA2 Personal, Dual-band 2.4GHz & 5GHz. Loosely coupled RFID Encoding: ISO 14443 A/B, ISO 15693, MIFARE, MIFARE DESFire EV1/EV2, HID Prox, iClass, iClass SE, iClass Seos. Output hopper upgradable to 125 cards.

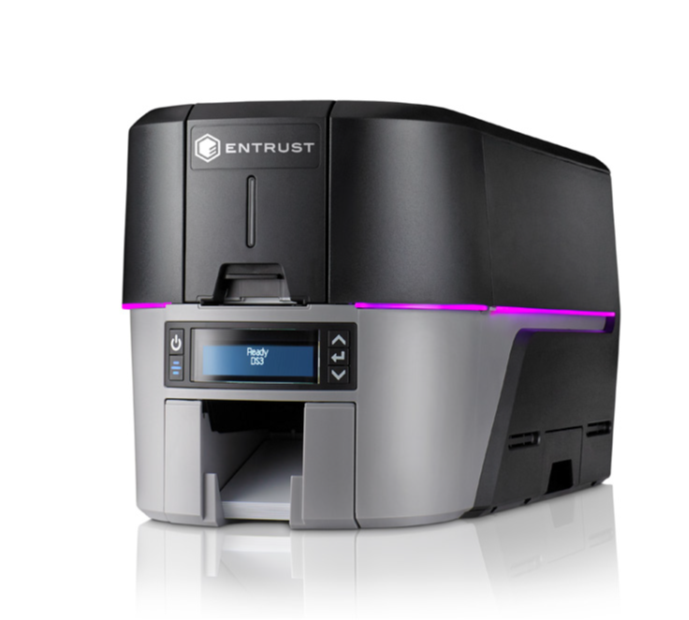

Entrust Sigma DS3 Direct-to-Card Printer

CARD SECURITY EXCLUSIVES

Print ID cards with unique personalization and security features Many Entrust ID card printers can add security features such as tactile impression and Holographic images to your cards when applied with the lamination module. But our Sigma portfolio adds two more security features – both applied without the additional expense of a laminator.

Color tactile impression

An affordable way to take security and card design to a new level of personalization – without the need for a laminator.

• Security you can see and feel: Choose from a variety of tactile foil cassettes that add color to your tactile impressions, making your cards difficult to replicate by counterfeiters, yet easy to validate by inspectors
• Impressive branding, impressive customization: Choose standard or custom dies to promote your brand with eye-catching features that differentiate your cards from the competition.

Luster

Add security (both a level 1 and a level 2 method of authentication) and impact to your ID card program by printing translucent color-shifting designs on your cards. A combination of visible iridescent mica print and UV fluorescing can be printed single-sided or double-sided with no lamination required.

Entrust Sigma ID Card Printers are specifically designed for today’s cloud environments and give you the ability to easily issue secure identities.

• Simple: From unboxing to issuing ID cards and mobile flashpasses to managing your printer, we made sure Sigma was the most user-friendly ID card issuance solution in the world.
• Secure: Our industry-leading issuance security architecture will keep your cards and our customers’ data safe and secure each step of the issuance process.
• Smart: Forward-thinking technology and scalability allow you to expand your ID card program as your needs evolve.

KEY FEATURES & BENEFITS

The world’s most user-friendly ID card printer

• Intuitive printer dashboard lets you see printer status, order supplies, check cleaning status, update firmware, or contact help – all from your mobile device.
• Seamless self-service lets you access how-to videos and other helpful resources by simply scanning a QR code on the LCD display.
• Variable LED light ring lets you incorporate brand colours or other customization into your ambient environment.

Unmatched security

• Optional locks.
• Secure boot protects system from malware or virus on boot-up.
• Trusted Platform Module (TPM) manages the printer’s own TLS/SSL certificates and keys.
• Connection and data sent between software and printer is encrypted.
• Customer data is encrypted and is not stored in the printer after printing is complete.
• Lustre printing and other security features added to cards protect from tampering and counterfeiting.

Flexibility and scalability built for the future

• Issuance capabilities include physical cards and digital mobile flashpass.
• Choose on-premises or cloud-hosted Deployment.
• Expand your ID program as your needs change by adding multi-hopper, smart card capabilities, colour tactile printing, RFID encoding, WIFI connectivity and more.
• Print anytime, anywhere with your mobile device (iOS, Android, Windows).

Standard Features

• Print technology Dye sublimation
• Print capabilities Single - or dual-sided
• Print resolution 300 dots per inch (dpi) (300 X 600, 300 X 1200)
• Print speed Single-sided color ribbon: up to 250 cards per hour (cph)
• Double-sided color ribbon: up to 180 cards per hour (cph)
• Card capacity Input hopper: 125 cards
• Output hopper: 25 cards
• Card sizes Thickness: 0.010 inches to 0.040 inches (0.25mm - 1.016mm)
• Dimension: ID-1, CR-79
• Physical dimensions L 17.4 in x W 8.9 in x H 9 in / 44.2 cm x 22.6 cm x 22.9 cm
• Weight 12.1 lbs (5.49 kg); varies with options
• Connectivity USB and Ethernet
• Warranty 36 months

Optional Features & Supplies

Magnetic stripe encoding, ISO 7811 three-track support (high- and low-coercivity), JIS Type II single-track option. WiFi, types: 802.11g/n, Authentication modes: None, WPA2 Personal, Dual-band 2.4GHz & 5GHz. Loosely coupled RFID Encoding: ISO 14443 A/B, ISO 15693, MIFARE, MIFARE DESFire EV1/EV2, HID Prox, iClass, iClass SE, iClass Seos. Output hopper upgradable to 125 cards.

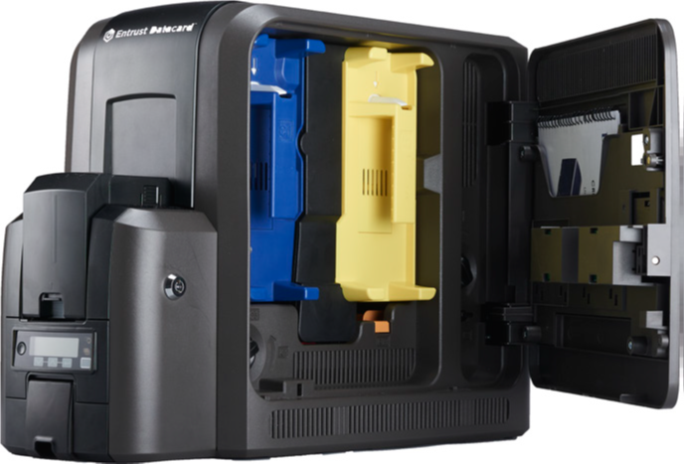

Entrust Datacard CR805 Retransfer Card Printer

A SCALABLE, INTEGRATED SOLUTION

As part of an integrated solution with Entrust Datacard™ software, supplies and service, the CR805 card printer is ideal for many different card programs.

Create cards that stand out from the crowd with:

• Pigment ink for brilliant, long- lasting images and designs
• 600 dpi for high definition printing, and to print microtext, bar codes and other elements
• Over-the-edge printing with retransfer technology to print on multiple card types including RFID technology cards
• Ability to apply two layers of retransfer film for additional card durability
• Option for enhanced durability and security by adding an inline lamination module and optional tactile impression module

Designed for Possibilities

The Entrust Datacard™ CR805™ card printer gives customers a complete, on-demand card printing solution with stunning color, card material flexibility, security features and durability they need to create virtually any type of card for their customers, citizens, and employees.

A stunning, high-end look for every card design. Create cards that stand out from the crowd — pigment ink provides photo-quality imagery, stunning resolution, and extreme precision. Show off your brand to the world with brilliant, eye-catching card designs, and print lifelike skin tones for more accurate photo representation. The versatility of the CR805 allows you to print everything from corporate badges and school IDs to driver’s licenses and other high assurance IDs.

Improve the security of schools, airports, and other key government facilities. With the CR805 card printer, you get images that last longer so that you can more accurately authenticate each cardholder. Additional printer security features include:

• Optional locks to help safeguard against unauthorized printer use
• TPM module included in every printer. Utilize RMM to insert, manage and remove user-specific certificates and keys in a secure location
• Secure boot prevents system startup at any indication of malware

Issue more durable cards, and save on replacement costs. Pigment ink provides longer lasting images, due to its natural resistance to UV fading and the effects of plasticizers. Plus, enhance the durability of your card with the CR805 card printer by adding an additional layer of retransfer film to the card. Even greater security and durability features — like tactile impressions — are available with the addition of the optional lamination module.

Use card substrates that work for you. With retransfer printing, you can print on the card material that meets your needs and budget. From PVC to PVC composite, PC, or PET card types, the CR805 handles it all with ease.

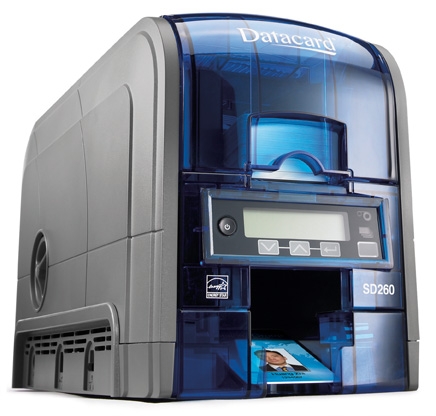

Entrust Datacard SD260 Direct-to-Card Printer

One-sided (simplex) card printing

• Colour or monochrome printing
• Reloadable supply cartridges with drop-in cleaning roller
• Intuitive LCD panel with soft-touch controls
• Optional smart card and magnetic stripe encoding
• Direct to card printing technology
• Standard Ethernet and USB connectivity
• 25-card output hopper standard with optional 100-card output hopper

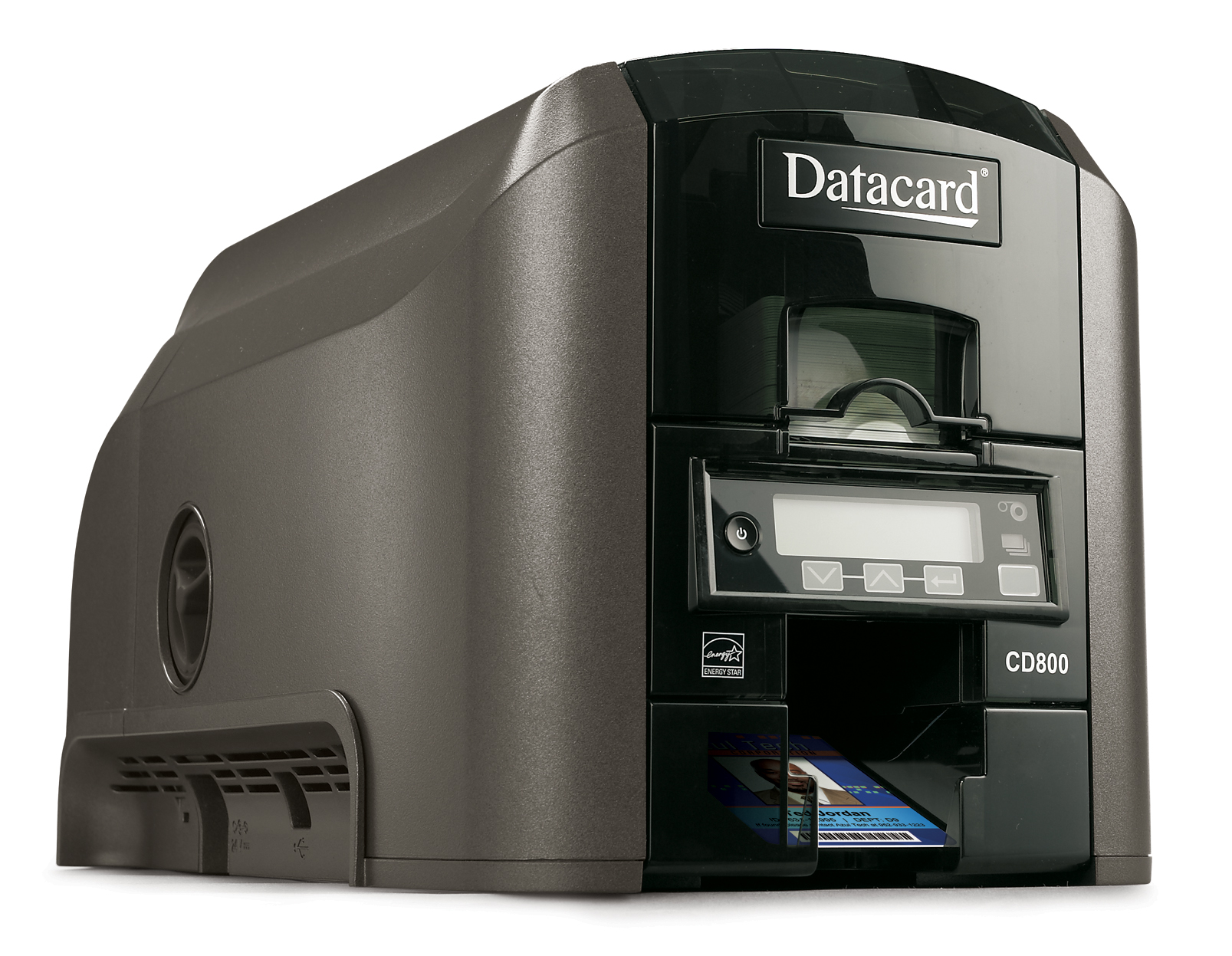

Entrust Datacard CD800 Direct-to-Card Printer

One-sided (simplex) or optional two-sided (duplex) printing

• Automatic 100-card input hopper with exception card slot
• Reloadable supply cartridges with drop-in cleaning roller
• Intuitive LCD panel with soft-touch controls and soft-power switch
• 25 card output hopper standard with optional 100-card output hopper
• Ethernet and USB connectivity standard on all CD800 printer models
• Optional magnetic stripe encoding
• Direct to card printing technology
• Optional Mifare and HID smartcard personalisation
• Colour and monochrome printing
• Up to 300 x 1200 dots per inch for enhanced text, barcode and graphics printing

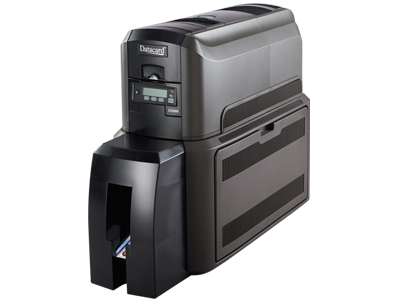

Entrust Datacard CD800CLM Direct-to-Card Printer

Ideal for increased Security and Durability Organizations including government agencies, corporations and education establishments face serious and escalating security threats. Issuers need next-level strategies and technology to help prevent ID card counterfeiting and fraud, better protect their people and facilities, and meet demands for faster service.

The Datacard® CD800™ card printer with inline lamination module directly addresses your needs by delivering offerings, including high-performance overlays, a unique tactile impression, a bar code reader and a card debow feature.
